Changing the Blade Sets

ANDIS Model AGC
2-Speed Clipper
REMOVING THE BLADE SET

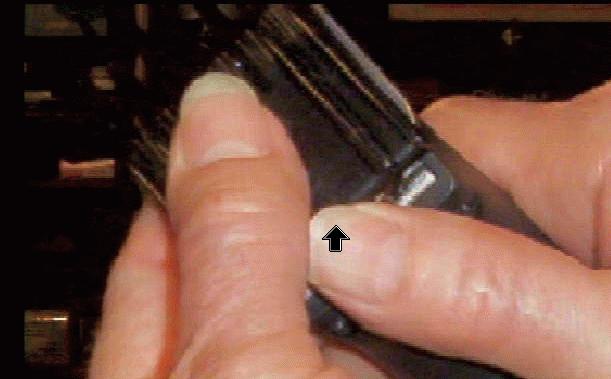

The BLADE SET is mounted on the BLADE HINGE. Push and hold the BLADE RELEASE located at the base of the BLADE SET, and pull the top of the BLADE SET toward you. Release the BLADE RELEASE then slide the BLADE SET up and off the BLADE HINGE.

REPLACING OR CHANGING THE BLADE SET

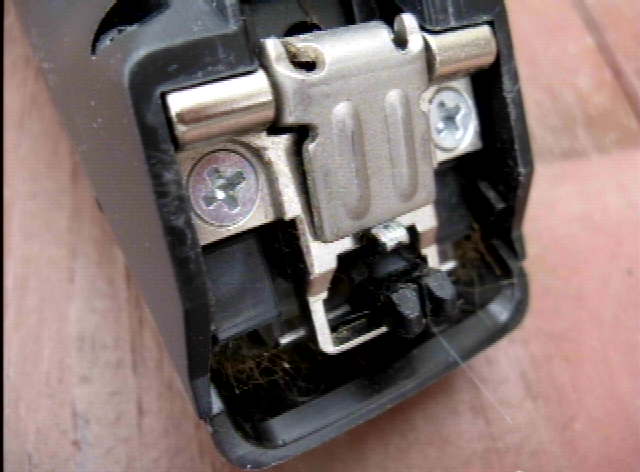

Slide the BLADE BRACKET onto the BLADE HINGE

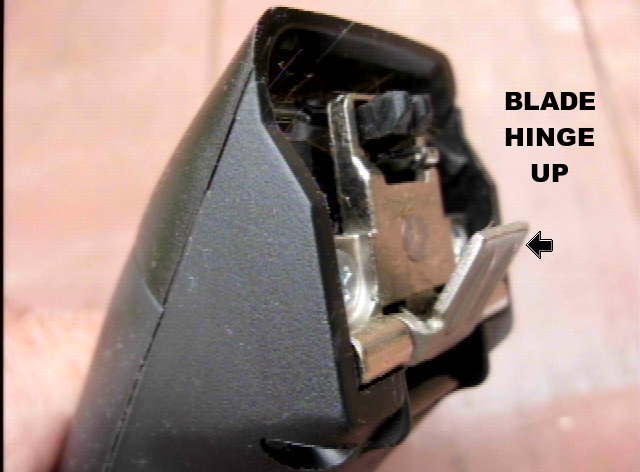

and push the Blade Set toward the Clipper to lock into position. If the BLADE HINGE has snapped closed and is flush with the clipper, use your thumbnail or a small screwdriver to pry the leading edge of the BLADE HINGE up, so as to facilitate
acceptance of the BLADE BRACKET.

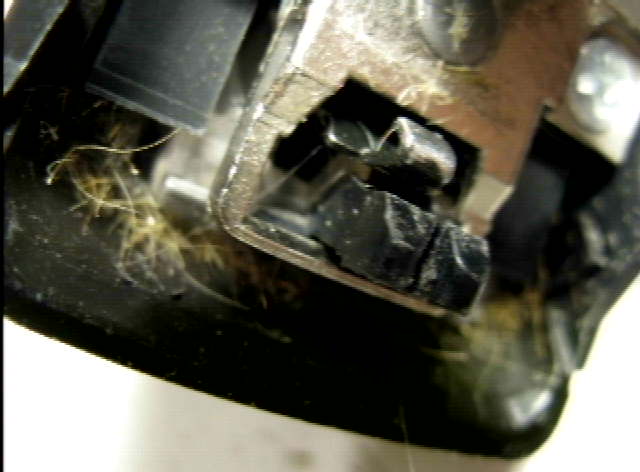

NOTE: It may be necessary to slide the BLADE DRIVE SLOT to the left or right to align it with the BLADE DRIVE TANG.
